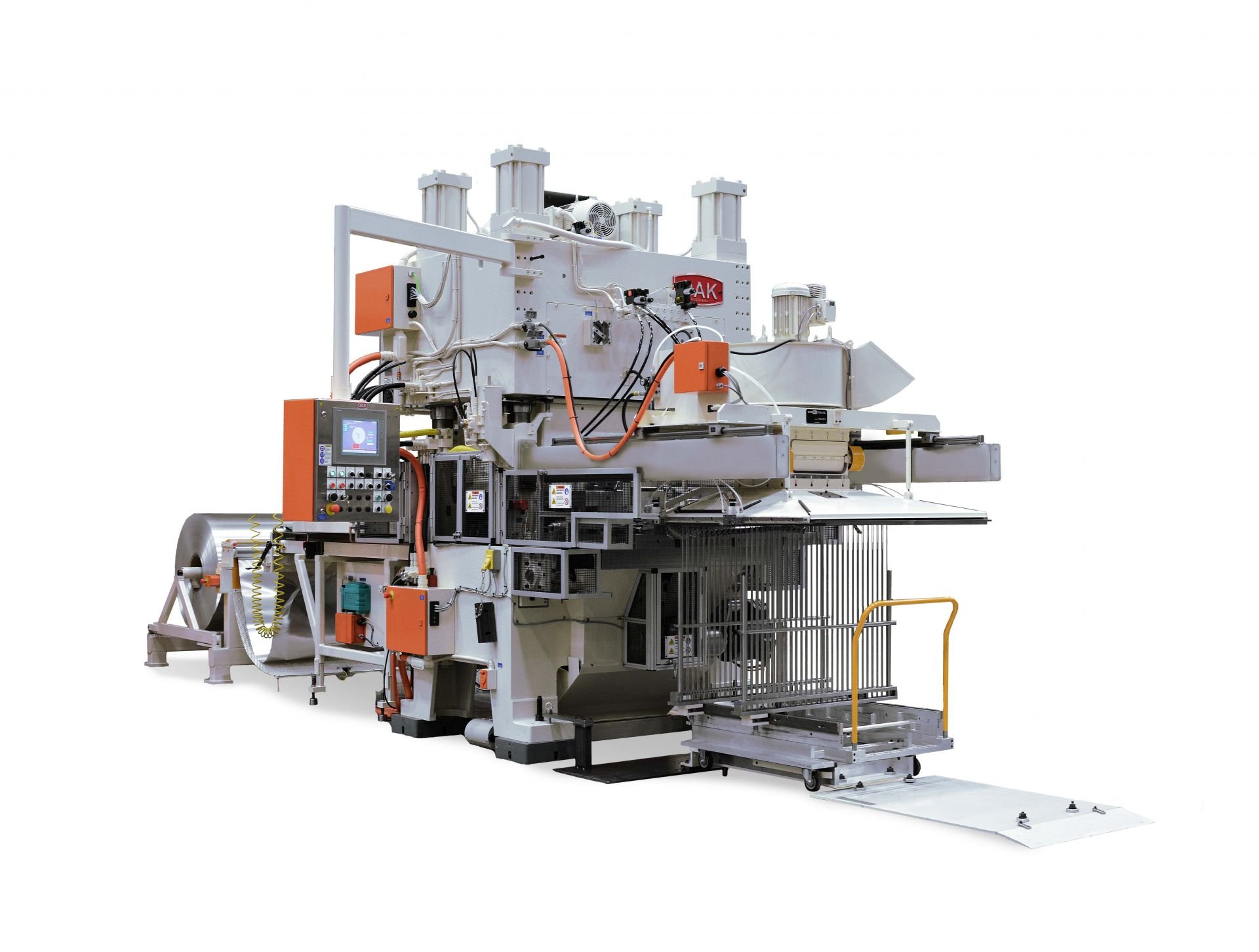

Presses for the HVAC Industry

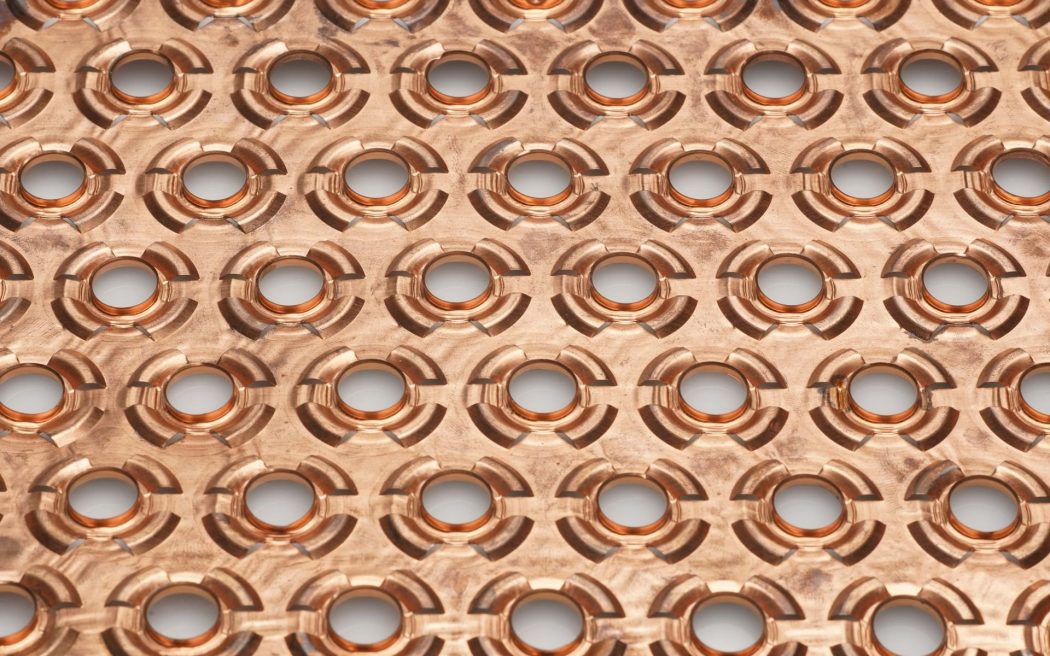

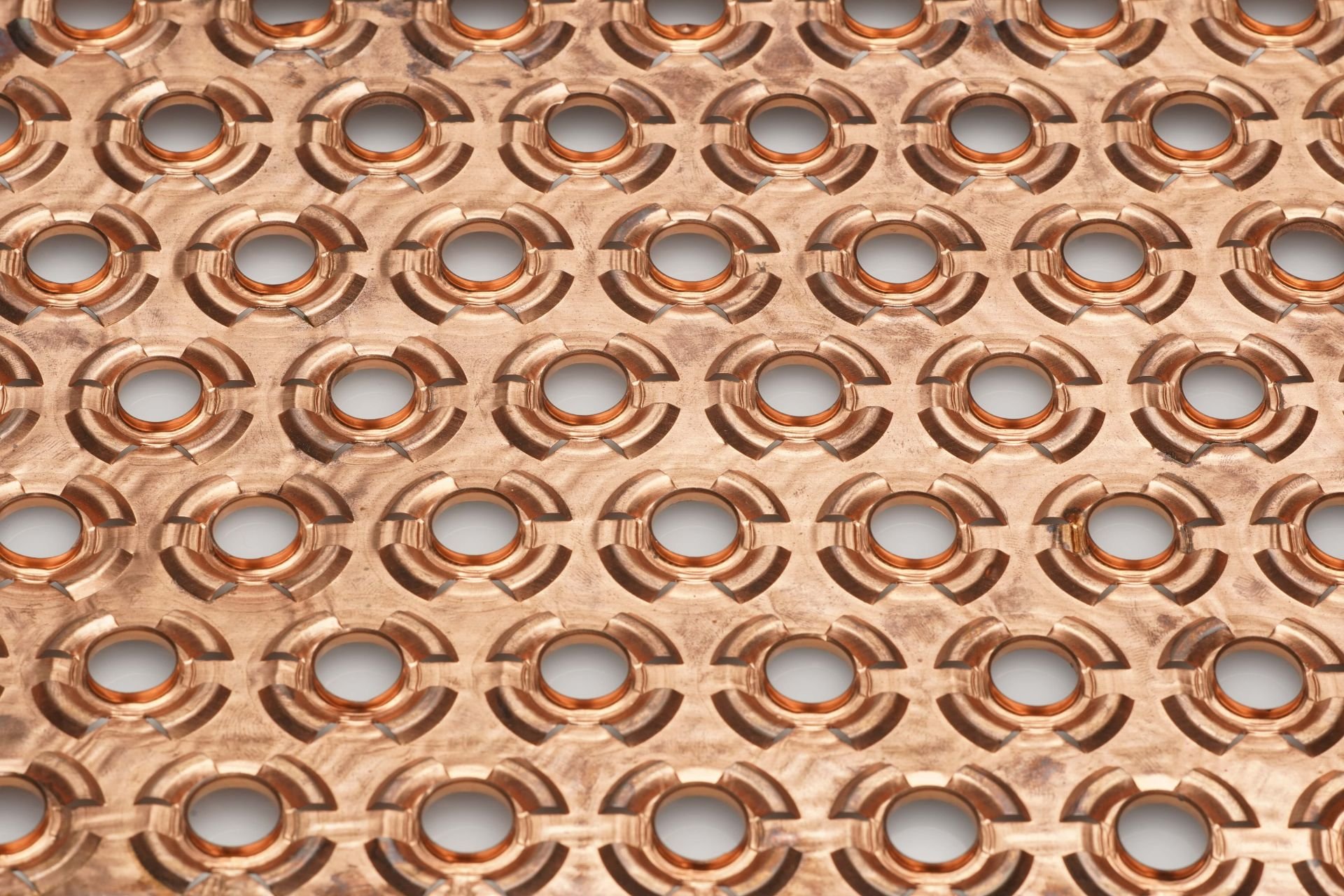

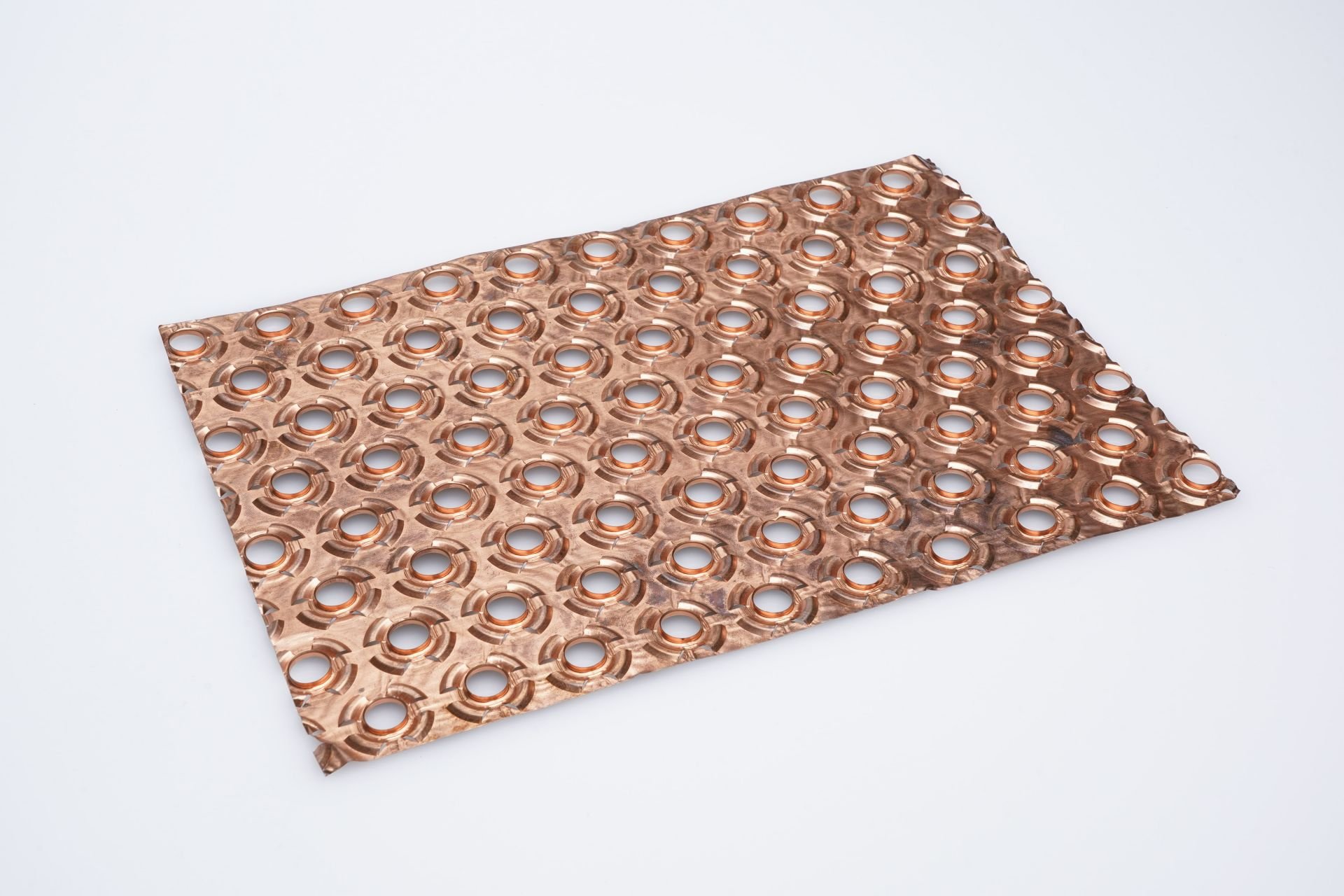

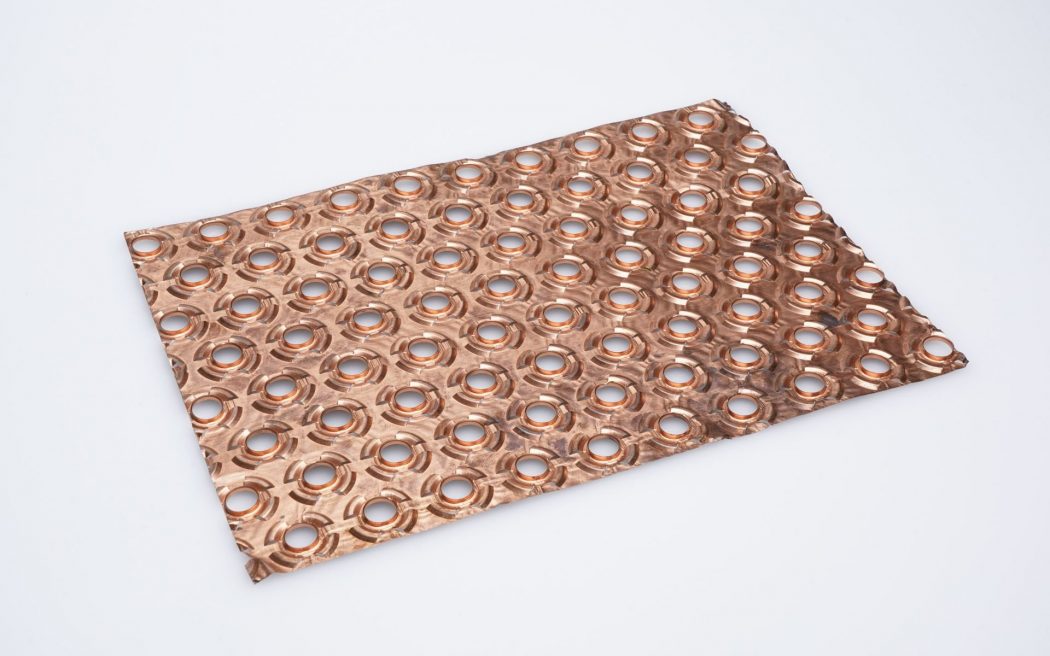

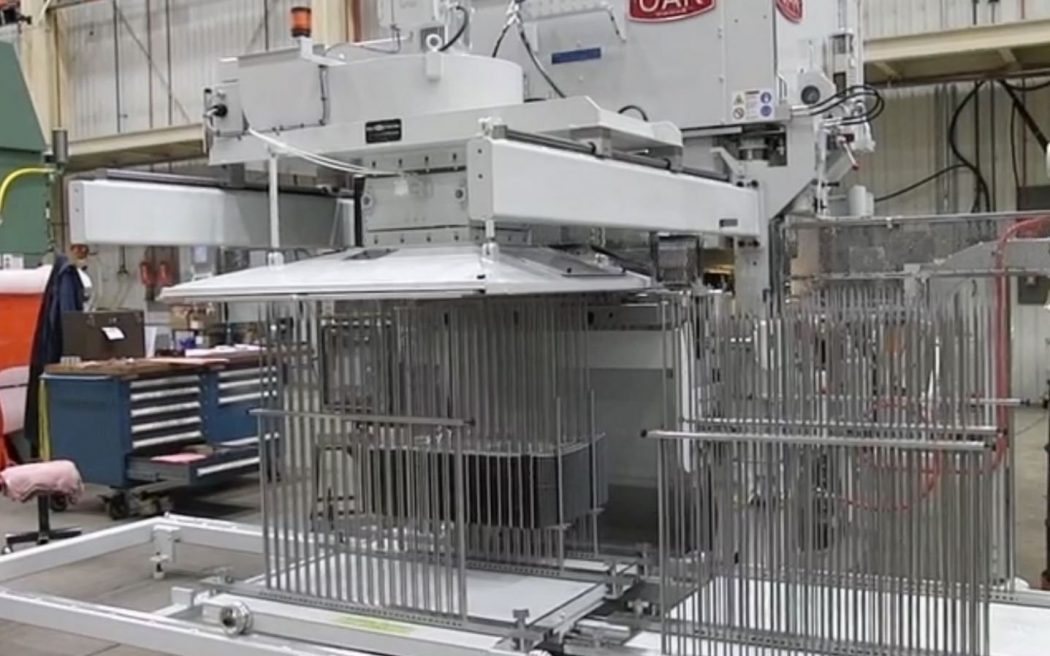

Oak Press presses are the industry standard in the HVAC market where large progressive tools are used to make the air conditioner “fins.” In addition to fin production, OAK Press presses can also be used to make the “end sheets” for the heat exchanger coils.

Visit Burr Oak Tool

HVAC

FP-1A Series: 30 tons

Speeds up to 400 SPM

FP-2B Series: 60 tons

Speeds up to 400 SPM

FP-400: 45 tons

Speeds up to 400 SPM

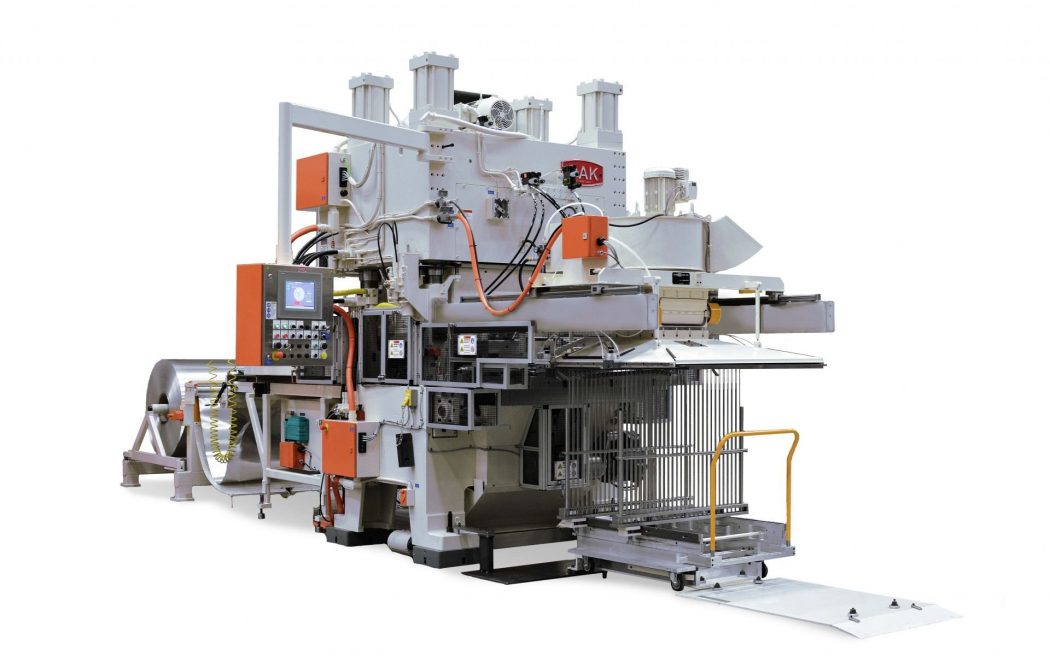

FP-1100 / 1400 Series: 120 to 160 tons

Speeds up to 400 SPM

Structure

OAK Press Solutions Inc. presses feature large die areas, superior slide guidance, and heavy-duty cast iron frame construction for superior adaptability, accuracy, and attenuation of shock and vibration.

Accuracy

The four-point connection system on the FP-1100 / 1400 Series provides the following benefits:

Greatly increased off-center loading capacity
Simplified tooling designs
Capacity to run large progressive tools in either direction (F-B or L-R)
Evenly distributed punching force across entire slide face

The patented scotch yoke slide of the FP-2 series press includes a total of twelve preloaded roller bearing assemblies.

Eight bearing assemblies are installed near the material pass line to ensure the lateral positioning of the slide.
Four additional bearing assemblies are installed above the drive shaft to counteract the effects of tipping forces created by tooling.

Hydraulic Withdrawal

OAK Press Solutions Inc. presses provides up to 8″ of slide lift which greatly simplifies:

Material lacing (you can open die area without affecting shut height settings)
Tooling Inspection and maintenance
Replacing tooling sections without removing die from press resulting in less downtime

Stuck-On-Bottom Recovery

Powerful hydraulic withdrawal system can “unstick” even severe jambs
No need to “bar” the press, reverse the drive motor, or loosen tie rods
Recover from slide stalls in seconds instead of hours

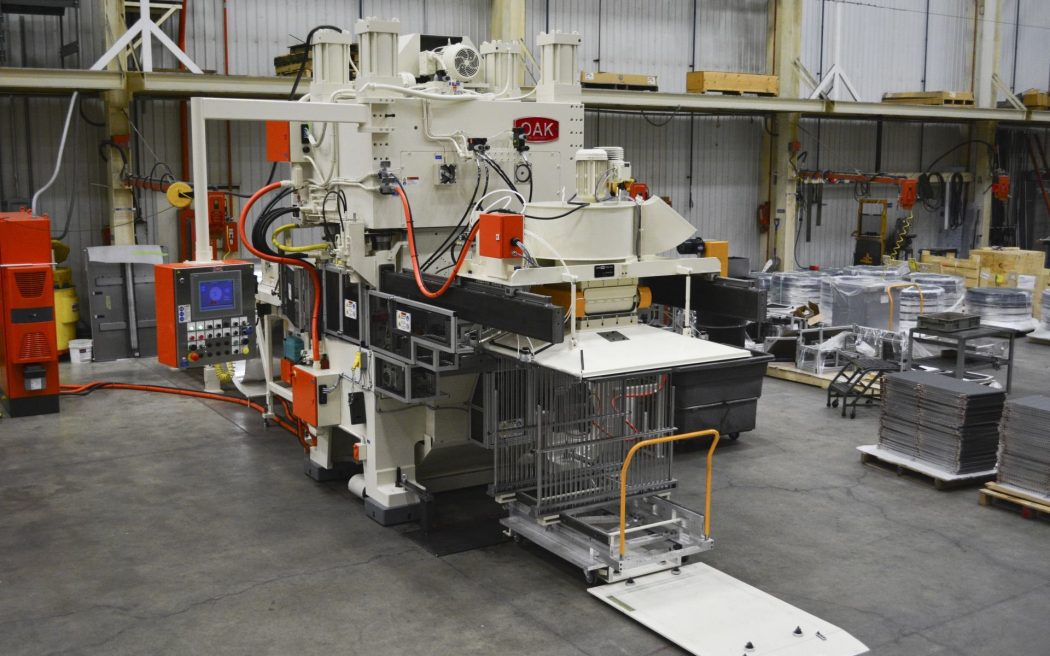

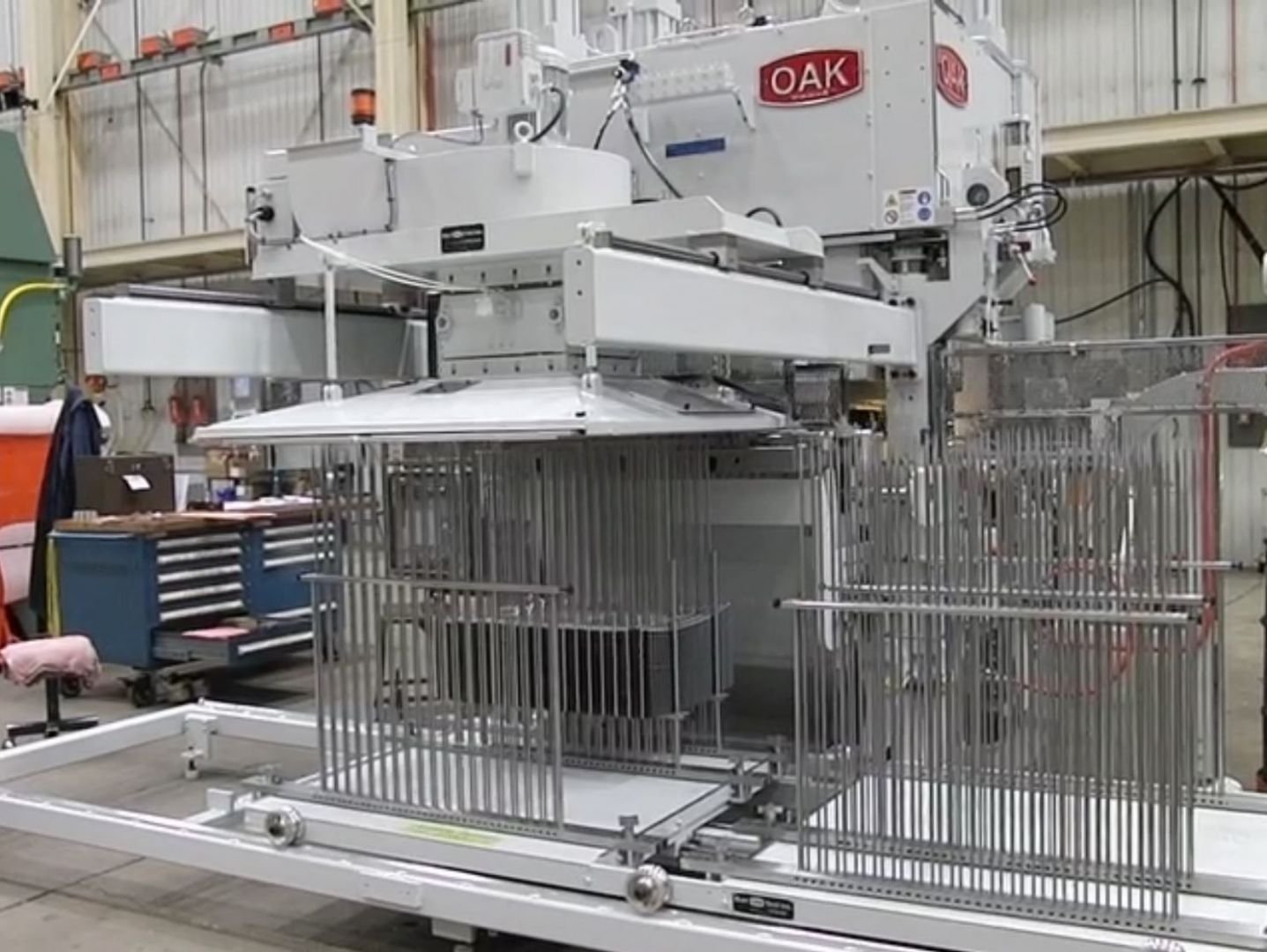

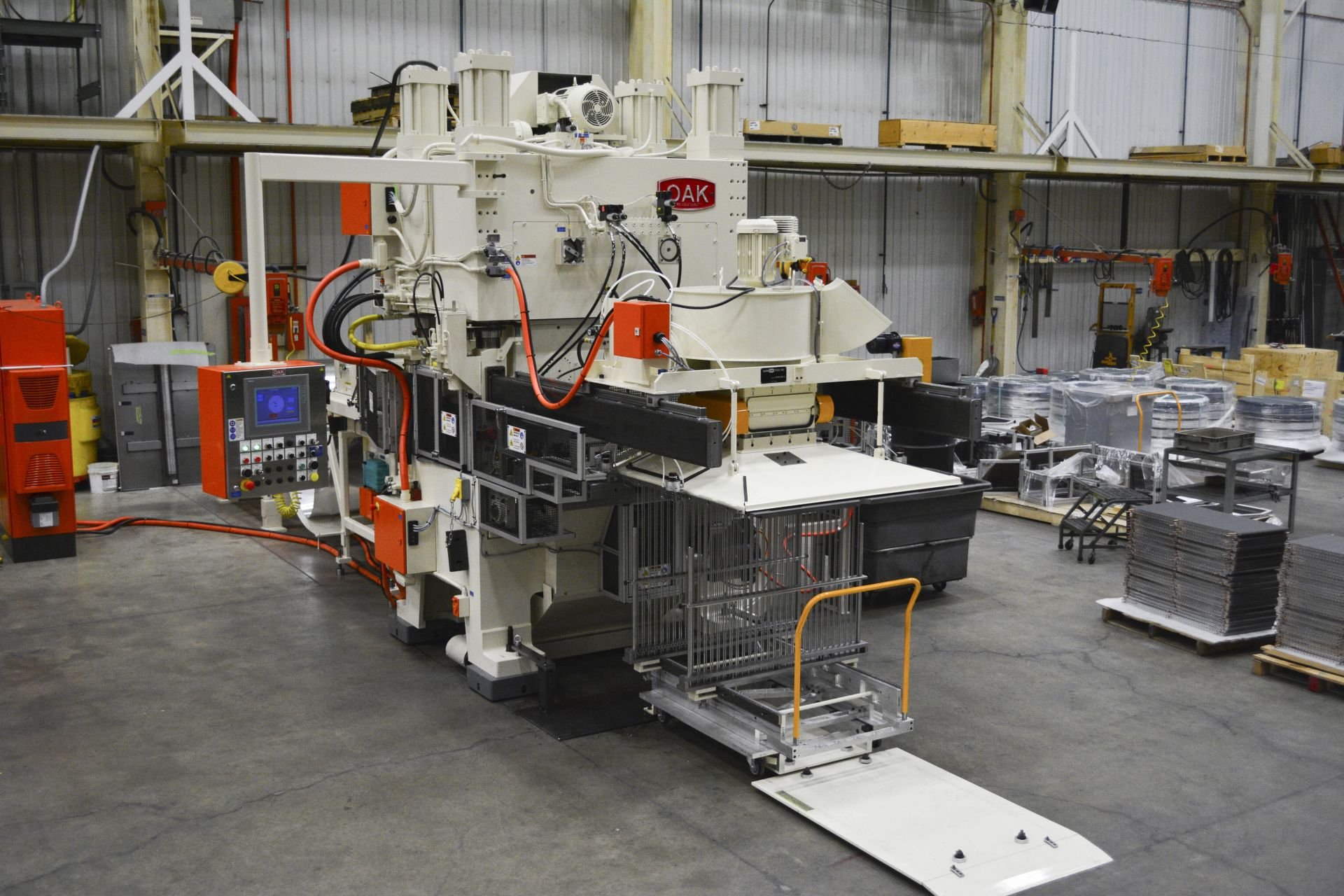

Photo Gallery
