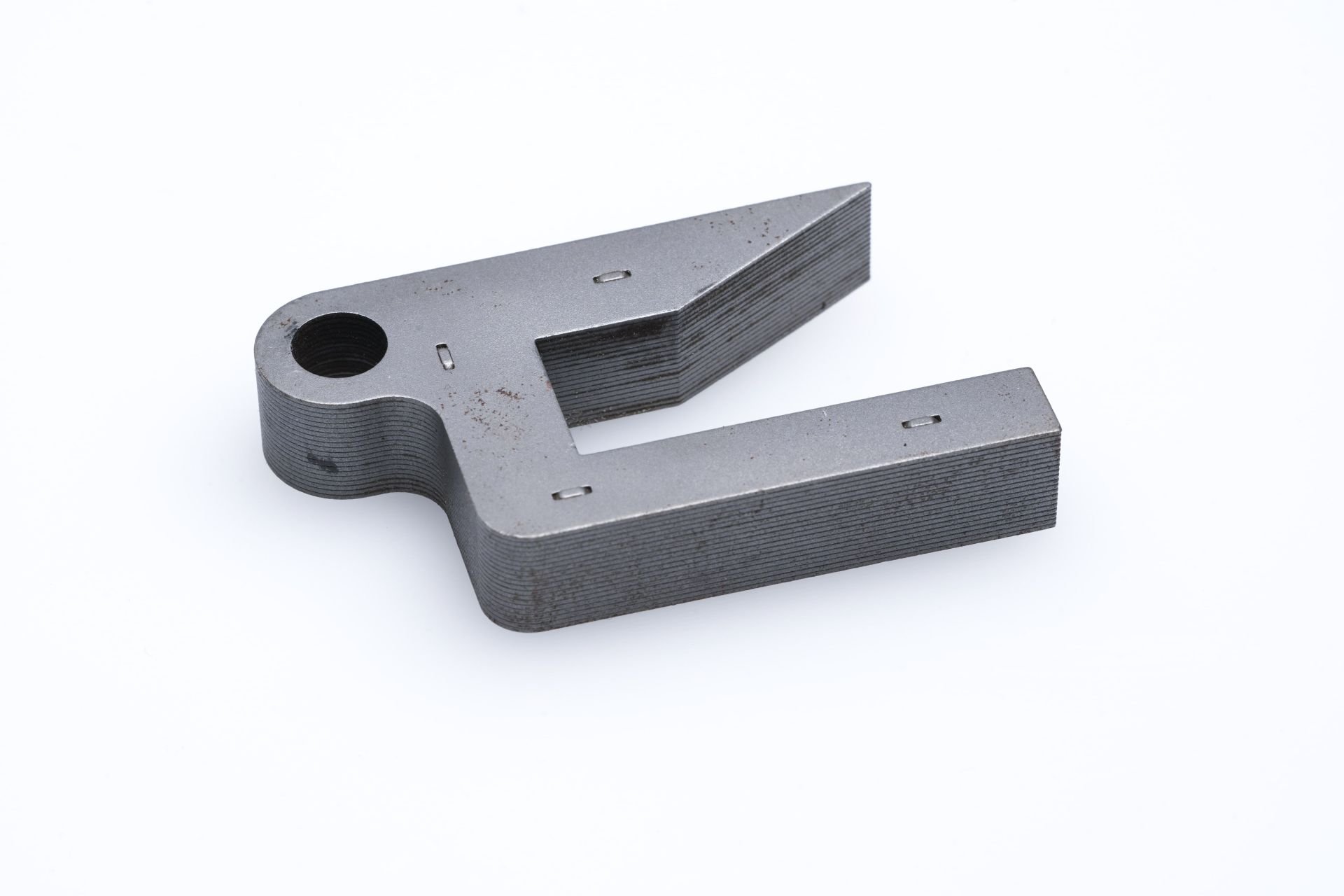

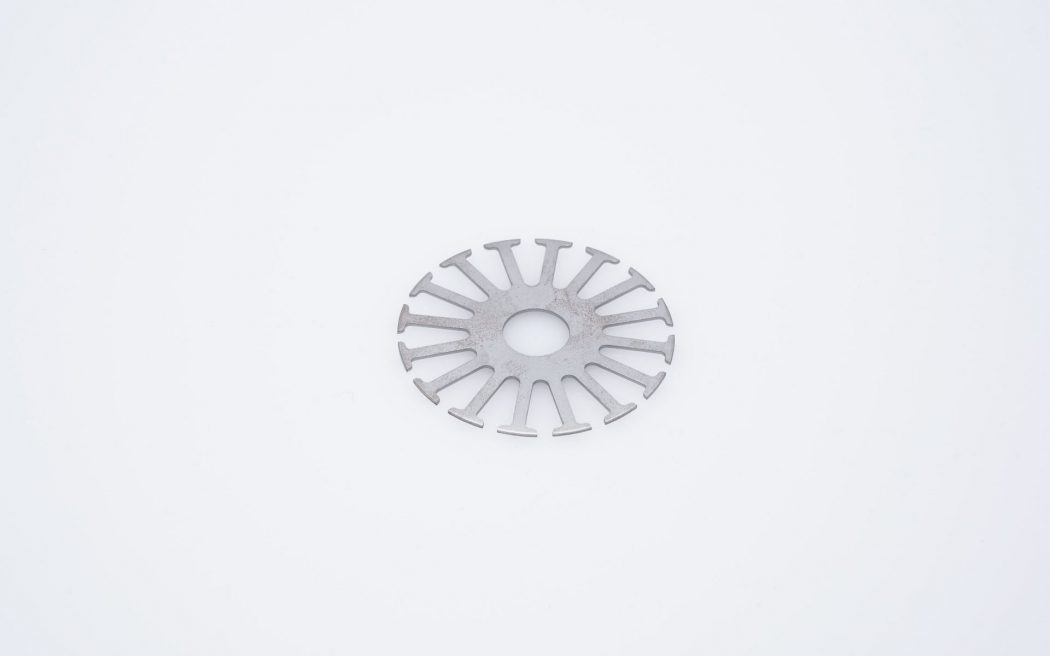

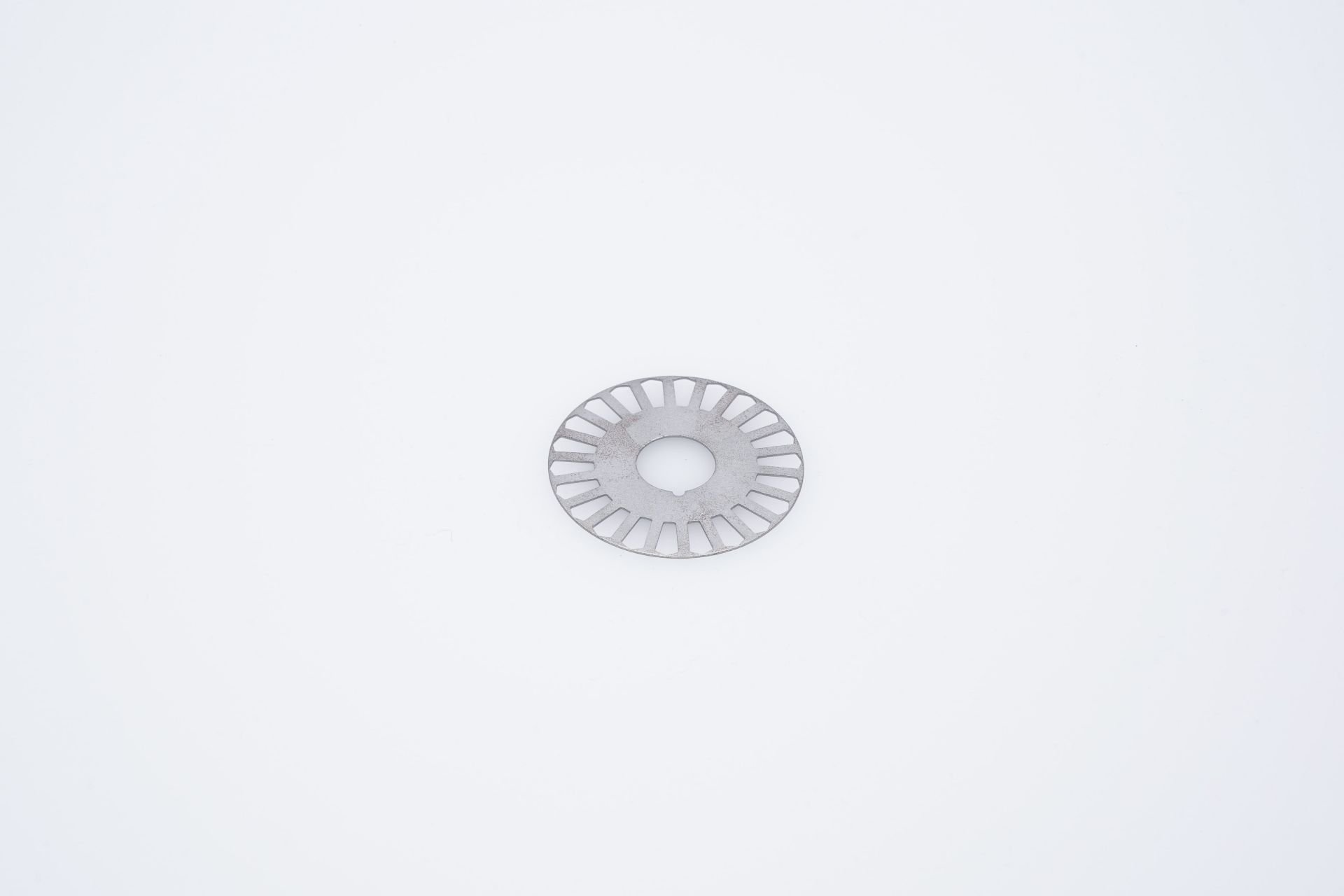

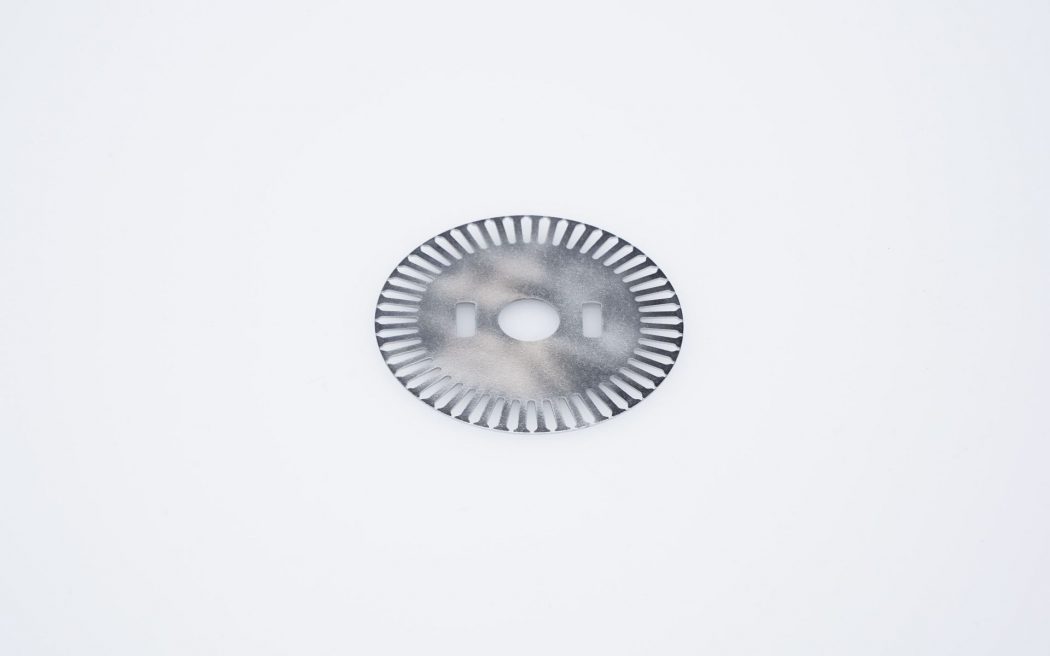

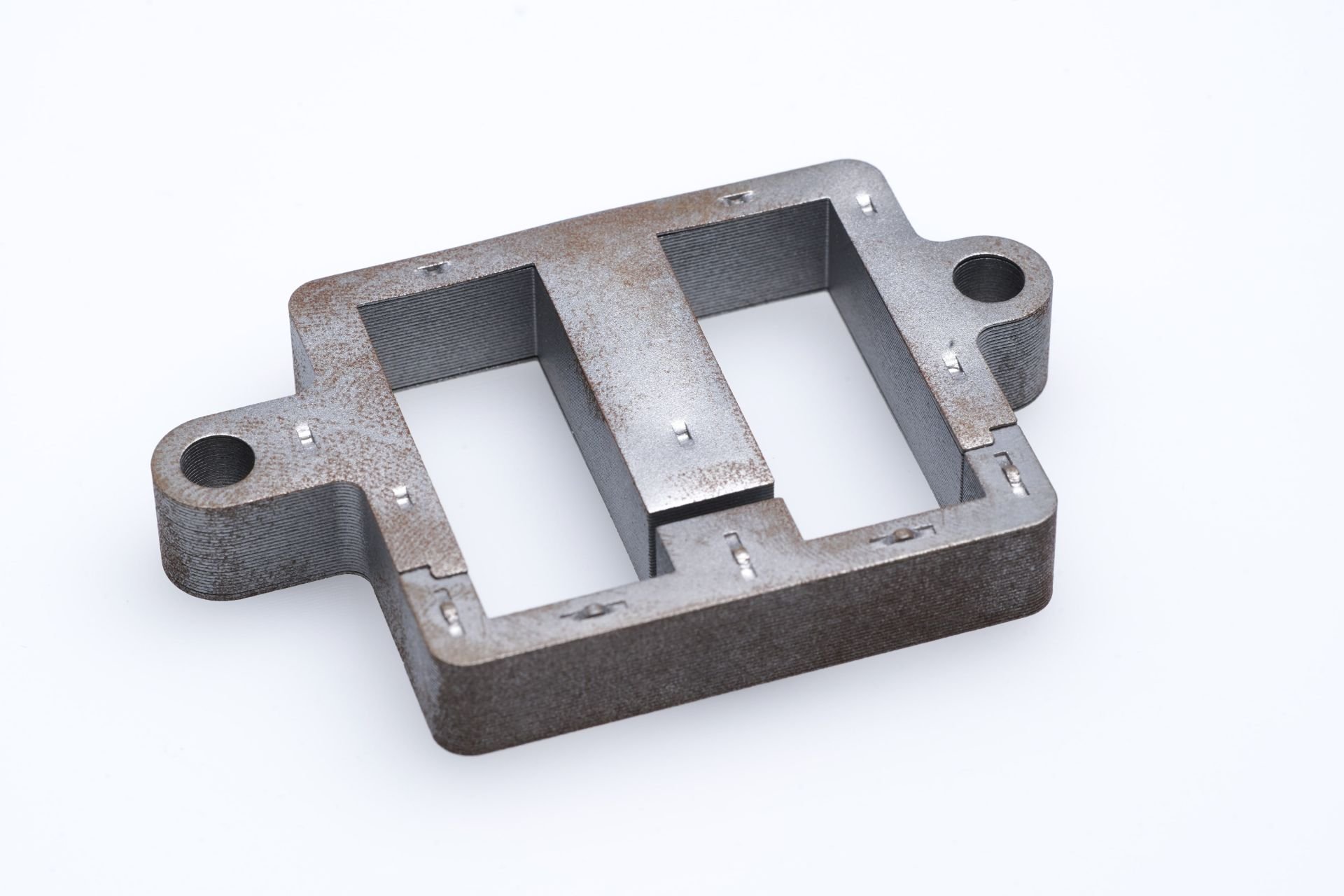

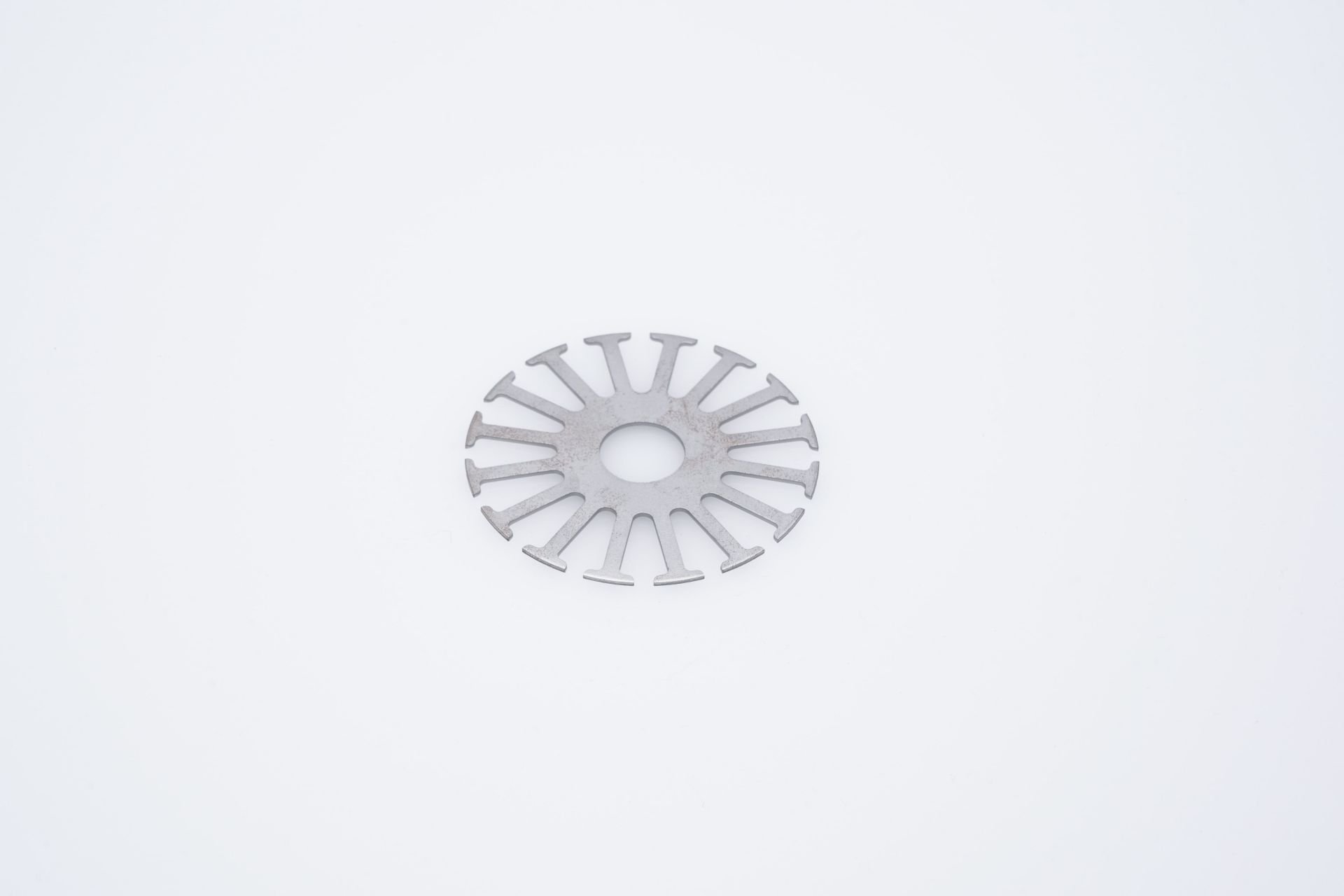

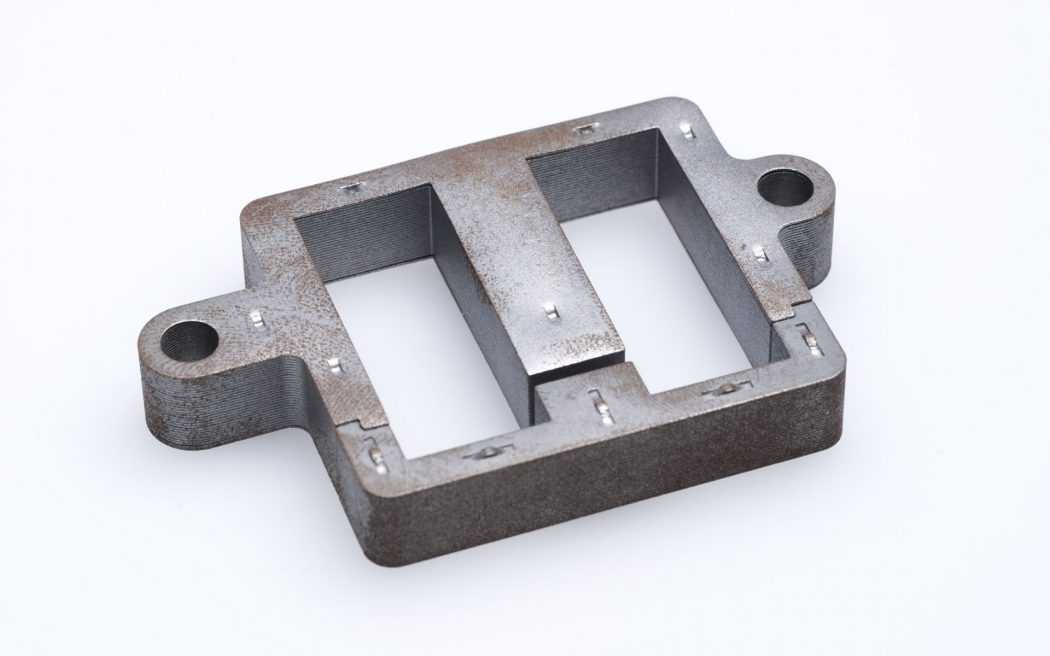

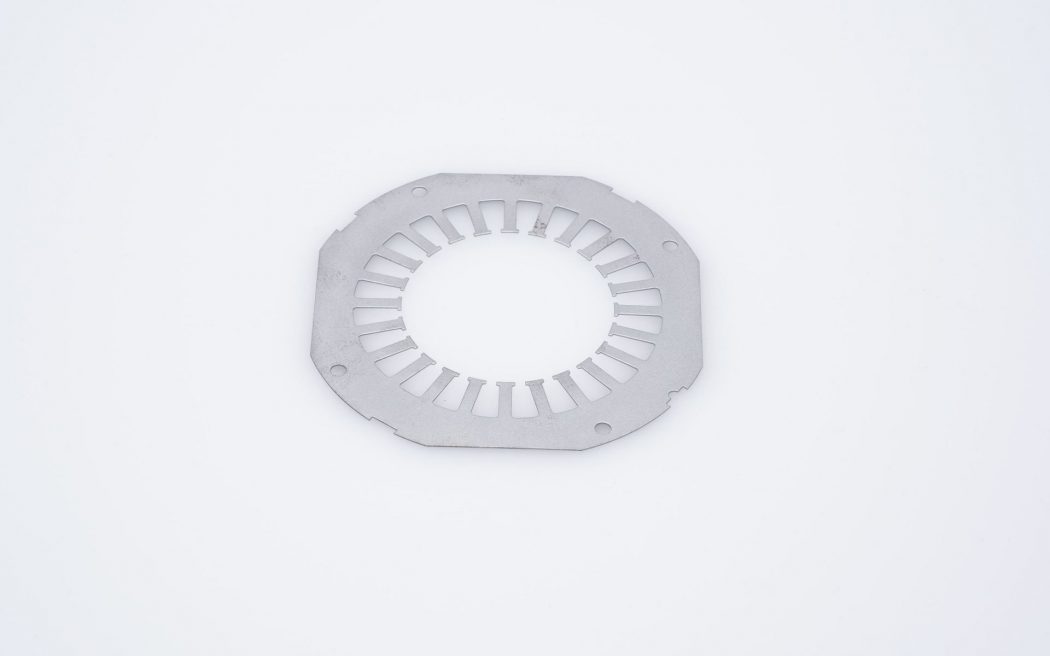

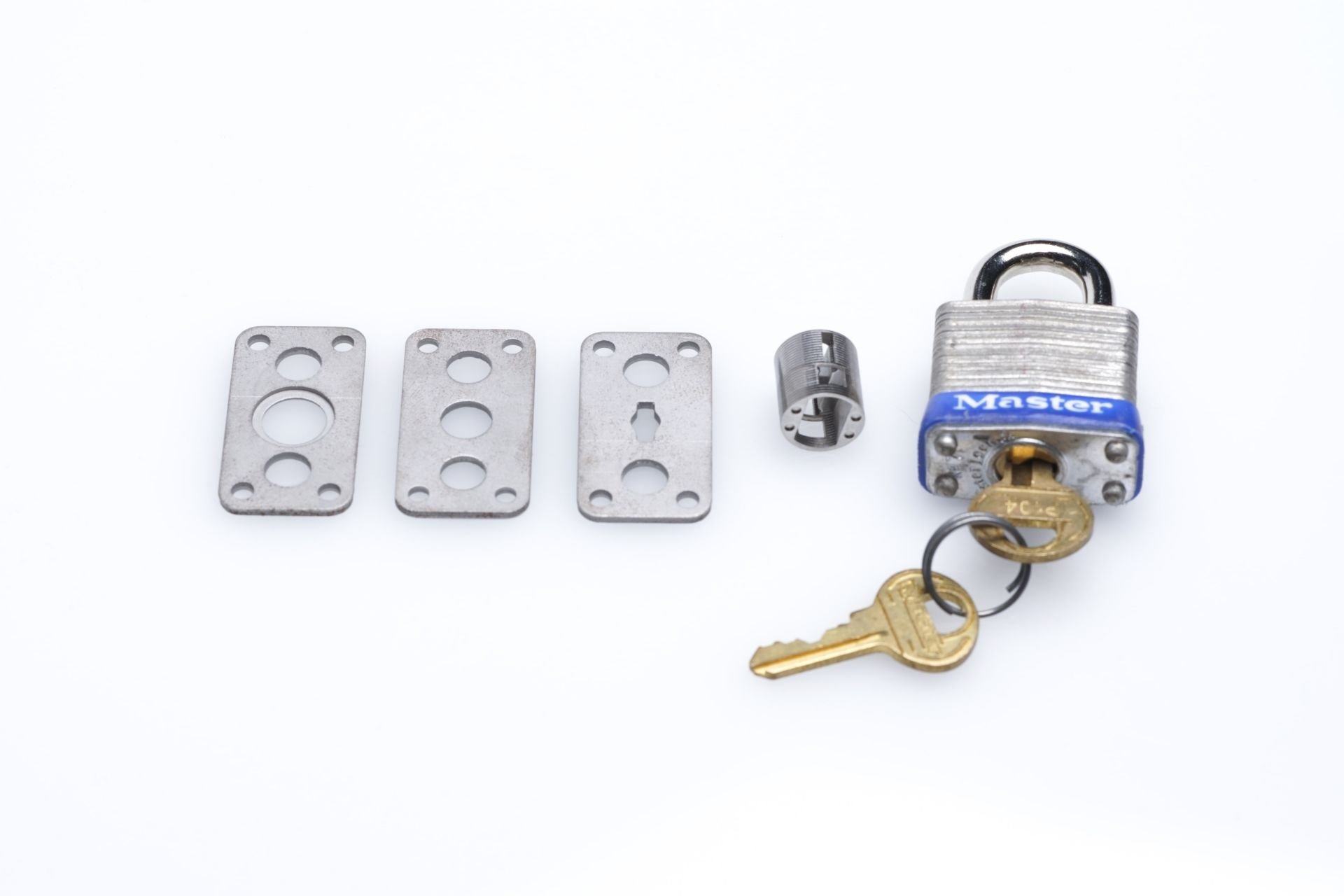

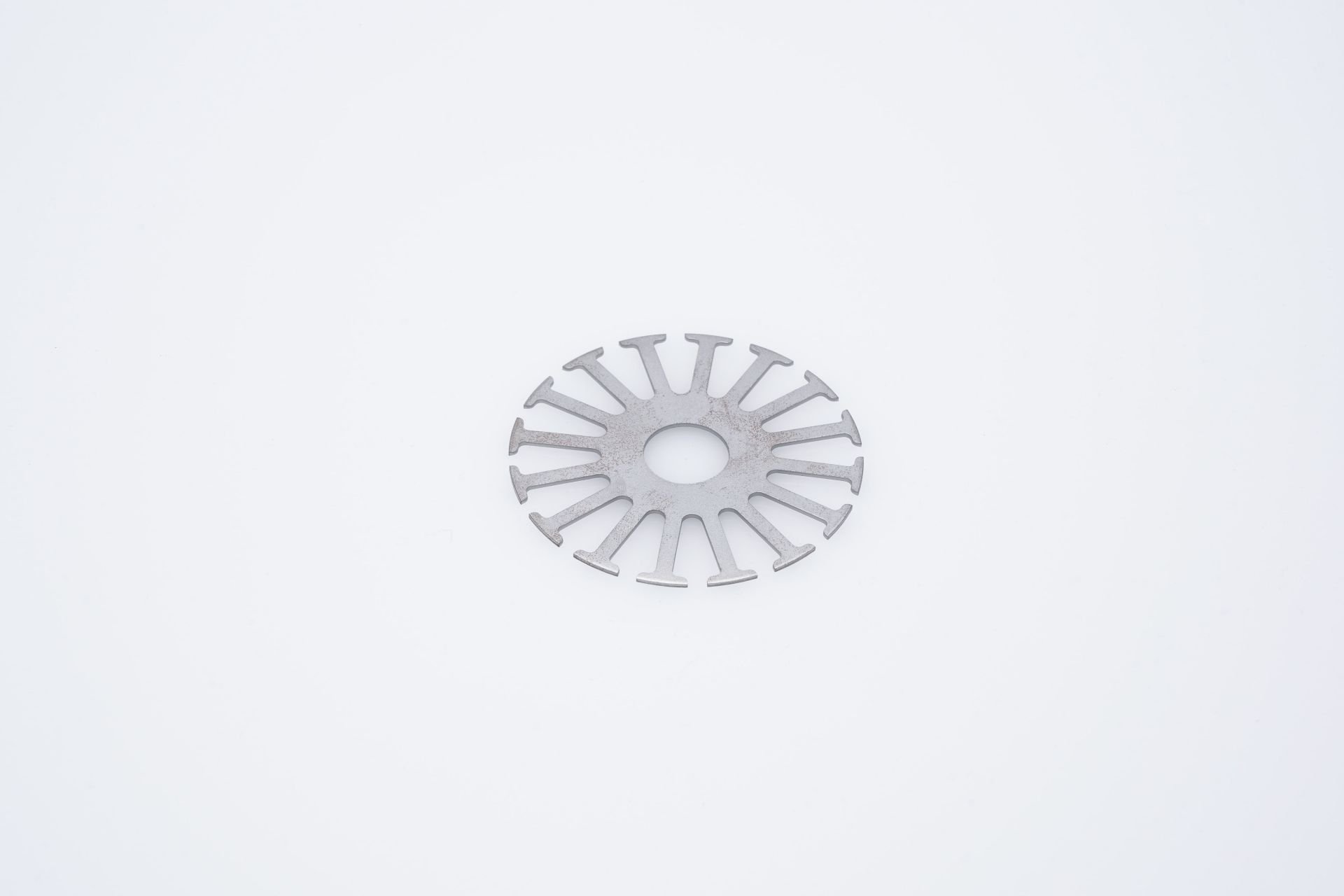

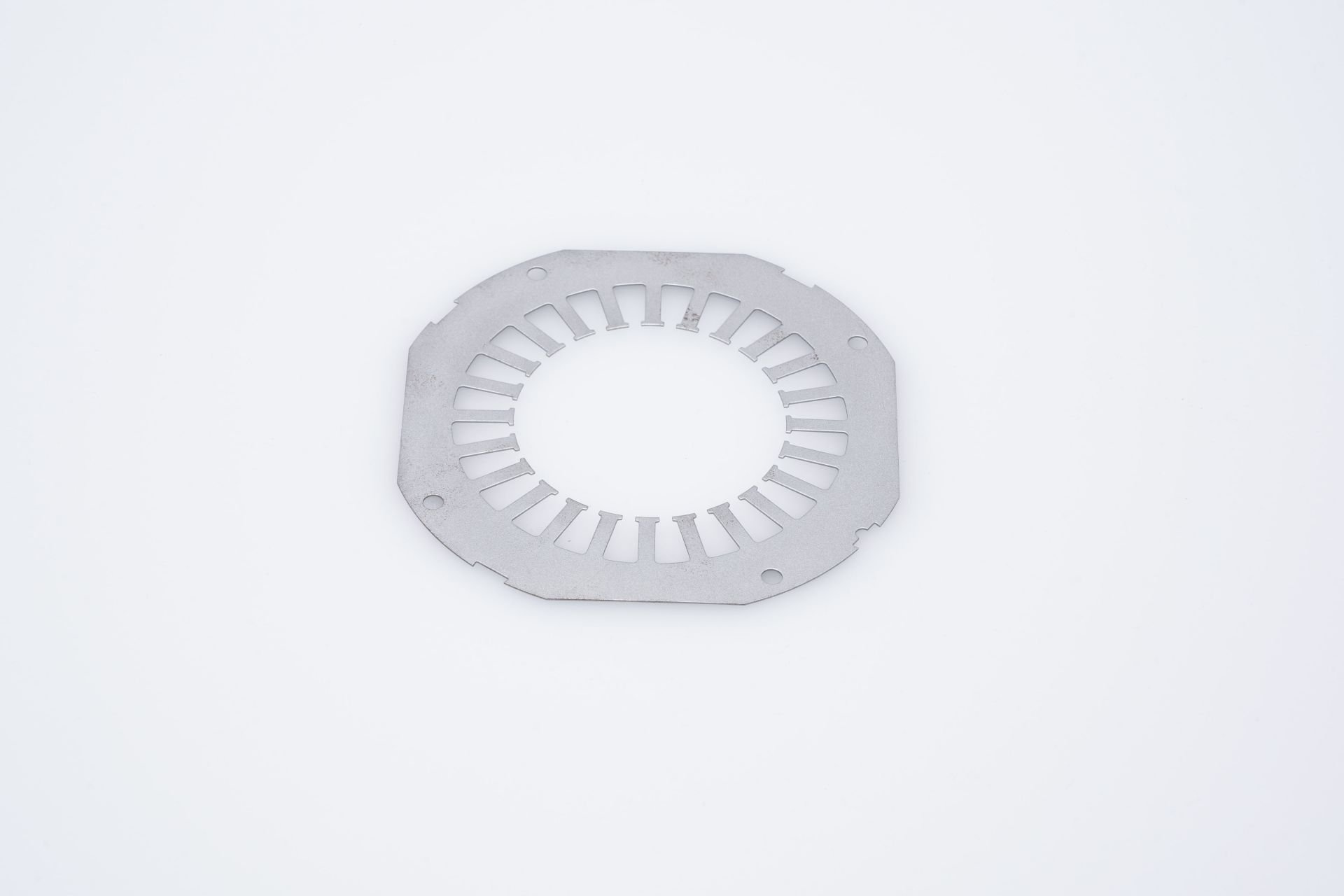

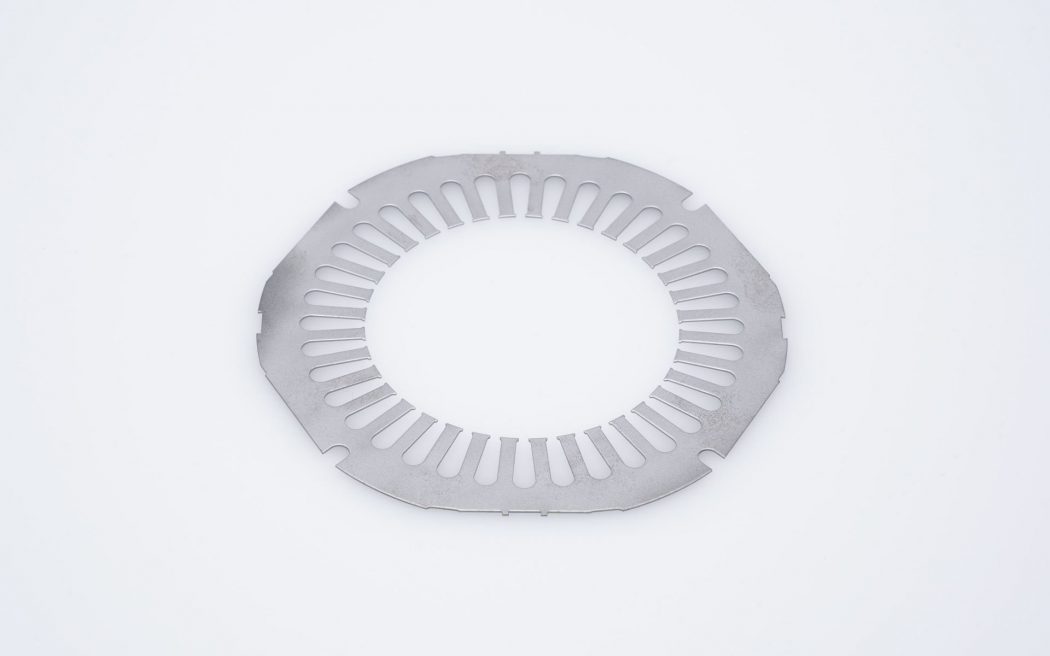

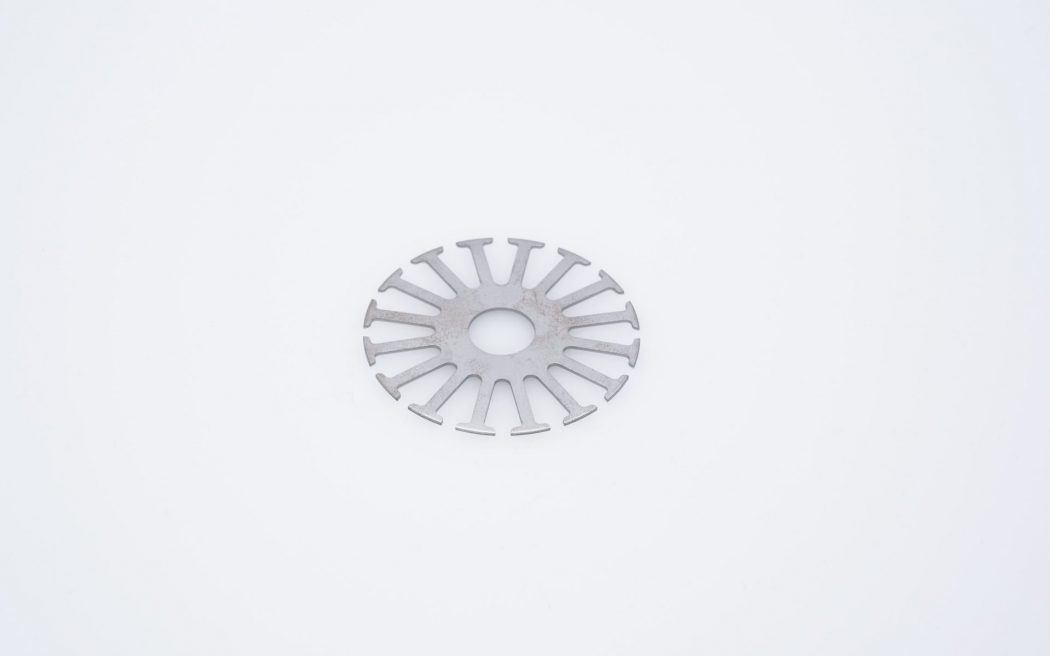

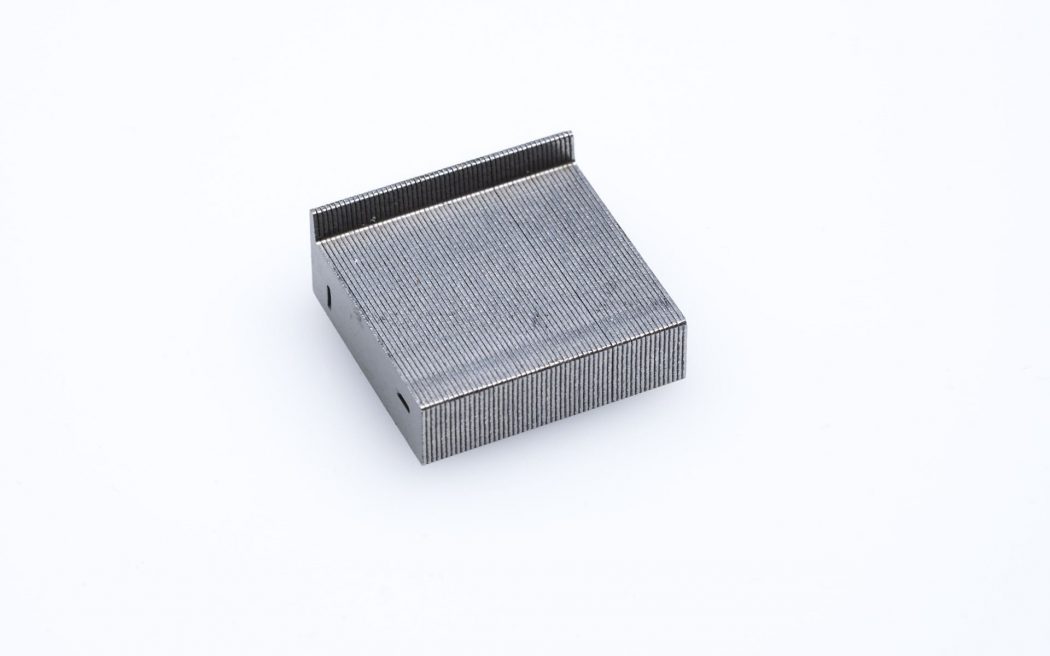

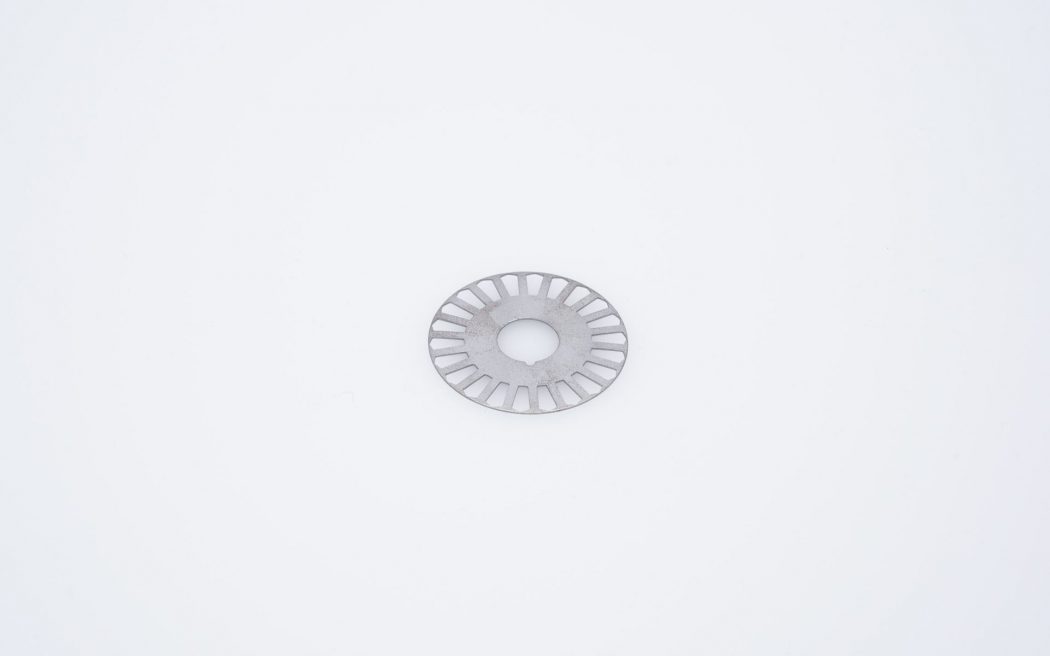

Presses for the Lamination Industry

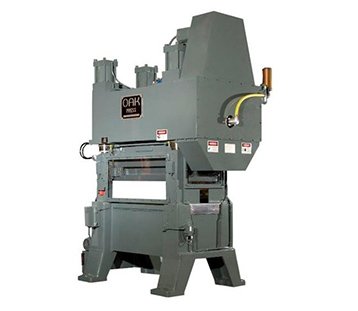

LP Series presses feature heavy-duty cast iron frame construction for superior attenuation of shock and vibration.

The patented Scotch Yoke slide of the LP Series press includes a total of twelve preloaded roller bearing assemblies.

• Eight bearing assemblies are installed near the material pass line to ensure the lateral positioning of the slide.
• Four additional bearing assemblies are installed above the drive shaft to counteract the effects of tipping forces created by tooling.

The LP Series provides up to 200mm slide lift which greatly simplifies:

• Material lacing (you can open die area without affecting shut height settings)
• Tooling inspection and maintenance
• Replacing tooling sections without removing die from press which results in less downtime

• Powerful hydraulic withdrawal system can “unstick” even severe jambs
• No need to “bar” the press, reverse the drive motor, or loosen tie rods
• Recover from slide stalls in seconds instead of hours
